ADSS -24B1-PE-500

Name: ADSS 24B1PE500
Brand: xhcable666
Price: 1 USD

Place of Origin : China

Brand Name : xhcable666

Certification : ISO9001 ISO14001

Model Number : ADSS 24B1 PE500

Insulation Material : PE

Type : Low Voltage

Application : Overhead

Jacket : PE

MOQ : 2000m

Packaging Details : in wooden drum which is suitable for shipment

Delivery Time : 15days against down payment

Payment Terms : T/T L/C

Supply Ability : 500KM per month

Conductor Material : optical fiber

Contact Now

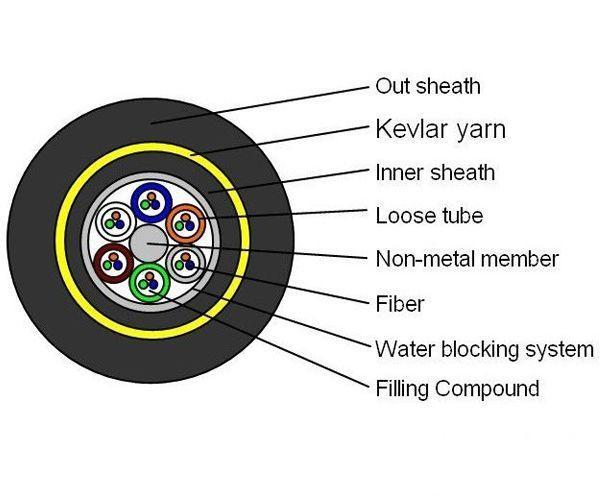

product description:ADSS cable is taken loose tube stranded structure .Fibers 250um are put into a loose tube made of high modulus plastics. Then the tubes are filled with a water-resistant filling compound.The tubes and fillers are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member formed a compact and circular cable core. After the cable core is filled with filling compound,then it is covered with thin PE inner sheath.outside inner sheath it is stranded with a layer of aramid yarns as a strength member, at last the cable is completed with PE or AT (anti-tracking) outer sheath.

Characteristics:

Can be used without cut off power

Taking AT sheath ,has good anti-electric erosion function

Light weight,small cable diameter can reduce effect of ice ,wind and the load of supports

Large span,the largest span more than one thousand meters Accurate controlled Kevlar process greatly improves the cable’s tensile strength capacity

Having excellent tensile strength and high temperature characteristics

Can be used more than thirty years

Standard: comply with standard IEEE1222-2004 as well as IED 60794-1
